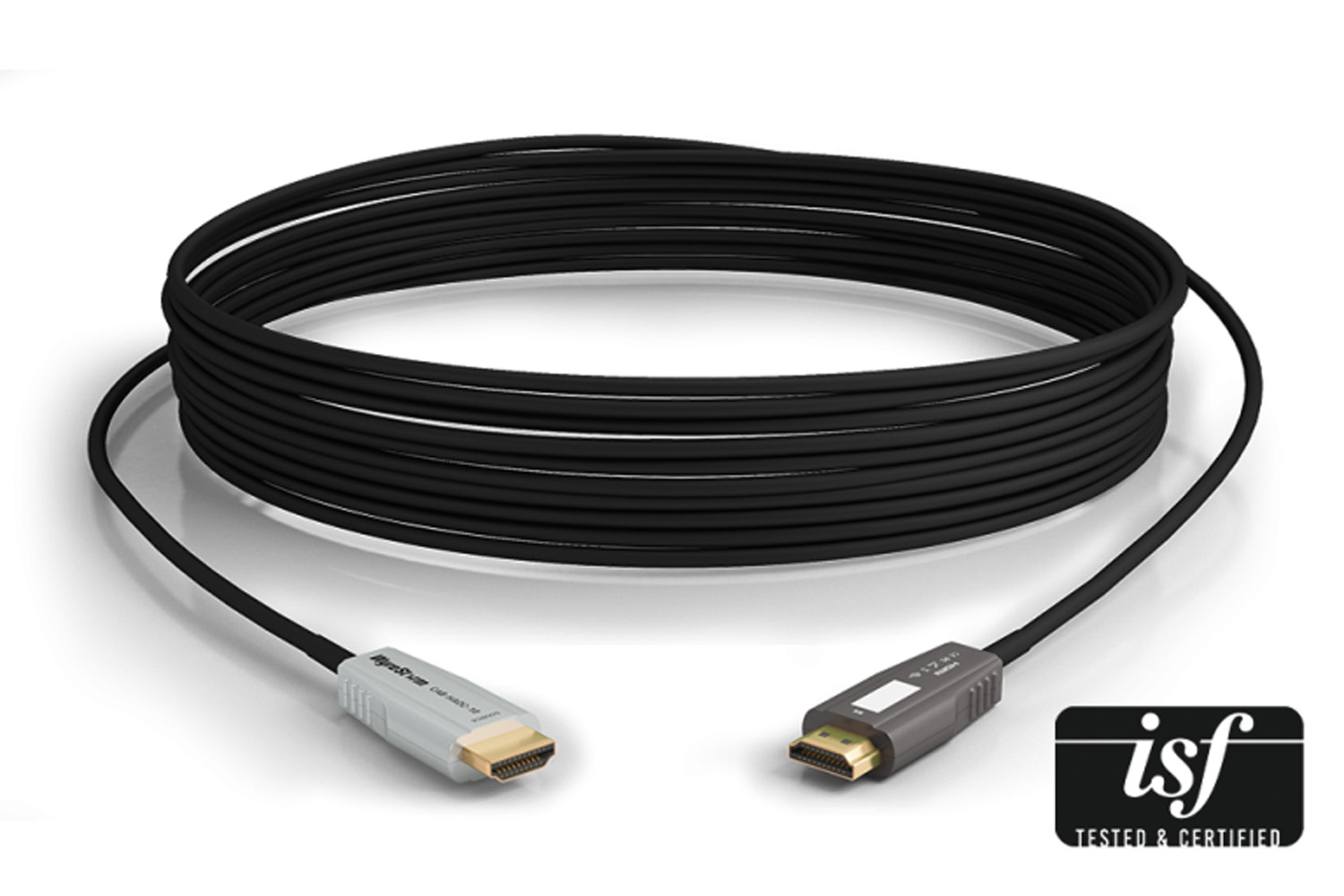

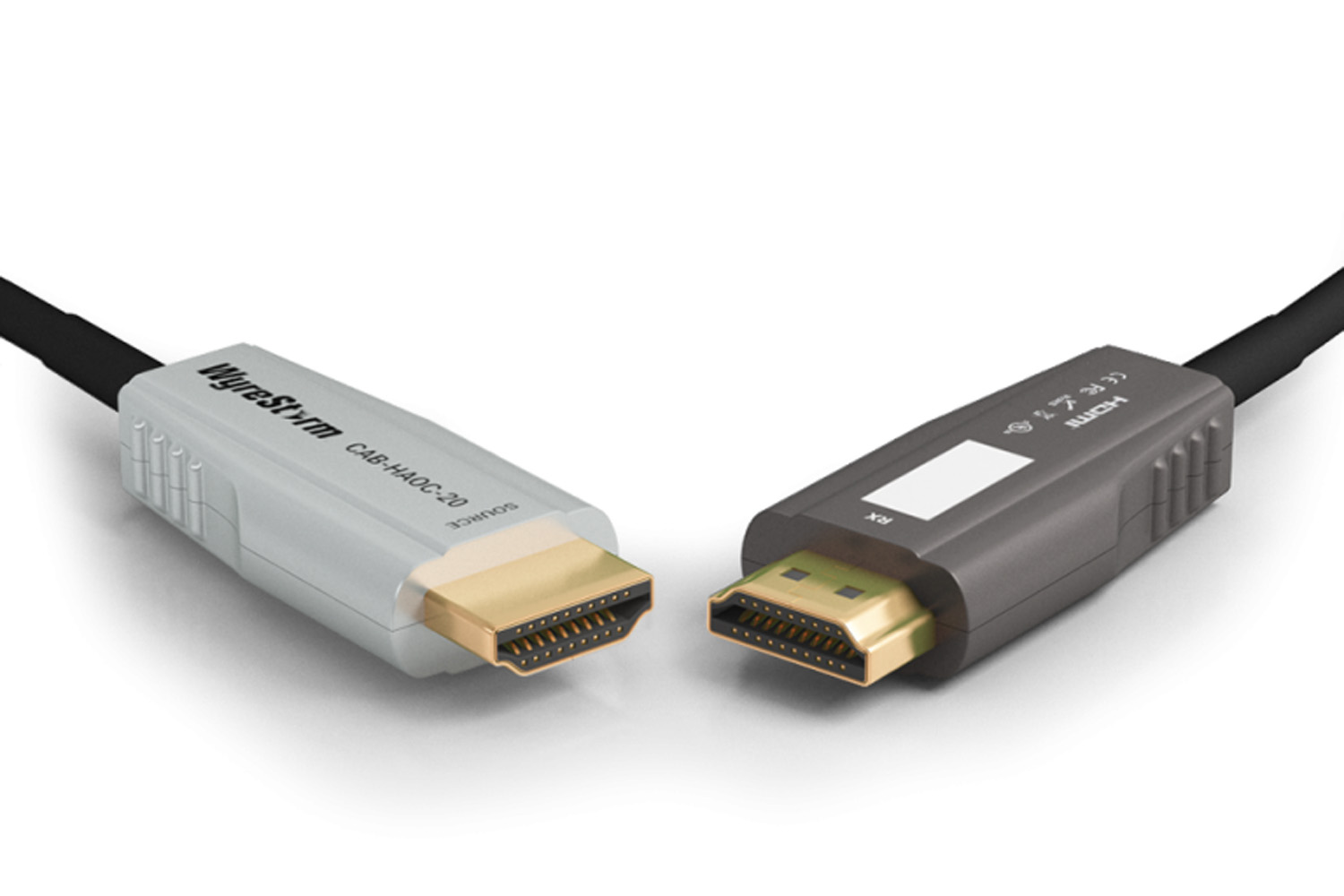

CAB-HAOC-30-C

Technical Specifications

Transmission

• Transmission Encoding: Uncompressed AOC (Active Optical Cable)

• End-to-End Latency: 10 μs

• Maximum Transmission Bit Rate: 24 Gbps (4-core, 6 Gbps per lane)

Video

• HDMI Version: HDMI 2.0b TMDS / HDMI 2.1 FRL

• Maximum TMDS Clock: 600 MHz

• FRL Encoding: 16b/18b

• Input Connector: 1 × HDMI Type A (19-pin male)

• Output Connector: 1 × HDMI Type D (19-pin male) with detachable Type A head

• Maximum Data Rate: 22.28 Gbps

Maximum Supported Video Resolutions

• 1920 × 1080p at 120 Hz

• 2560 × 1440p at 144 Hz, 4:4:4, 8-bit

• 3840 × 2160p at 60 Hz, 10-bit HDR, 4:2:0

• 3840 × 2160p at 60 Hz, 12-bit HDR, 4:2:2

• 3840 × 2160p at 60 Hz, 10-bit HDR, 4:4:4

• 3840 × 2160p at 60 Hz, 10-bit HDR, RGB

• 4096 × 2160p at 60 Hz, 4:4:4, 10-bit HDR

• 5120 × 2880p at 30 Hz, 10-bit HDR, 4:4:4

Supported Video Standards and HDR

• DCI

• Static HDR

• HDR10 and HDR10+

• Dolby Vision

• HLG (Hybrid Log-Gamma)

• SL-HDR1

• PQ (Perceptual Quantizer)

• BT.2020

• BT.2100

Audio

• Supported Audio Formats:

  • 2-channel PCM

  • Multichannel LPCM

  • DTS:X

  • Dolby Atmos

• Maximum Sampling Rate: 192 kHz

• Maximum Audio Channels: 32

• Audio Return Channel (ARC): Supported

Communication and Control

• HDCP: Pass-through; HDCP 2.3 supported

• EDID: Pass-through (RX → TX)

• Ethernet: 100 Mbps supported

• Consumer Electronics Control (CEC): Supported

• Variable Refresh Rate (VRR): Supported

• Auto Low Latency Mode (ALLM): Supported

Power

• Power Supply: Passive 4.5–5.5 V DC (supplied by the connected source)

• Maximum Power Consumption: 250 mW

Additional Features

• Uncompressed optical transmission of HDMI signals up to 24 Gbps

• Supports resolutions up to 5K (5120 × 2880p) at 30 Hz

• Compatible with current and emerging HDR standards up to 60 Hz

• Native HDMI communication for CEC and ARC functionality between compatible devices

• Supports HDMI gaming features, including VRR and ALLM

• Designed for environments with high electromagnetic (EM) or radio-frequency (RF) interference

• Kevlar-protected communication cores

• High-quality aluminum construction

• Low-profile transmitter head measuring 20 mm (0.79 inches)

• Supplied coiled in the box

• No single-use plastic included (SUPFree)
