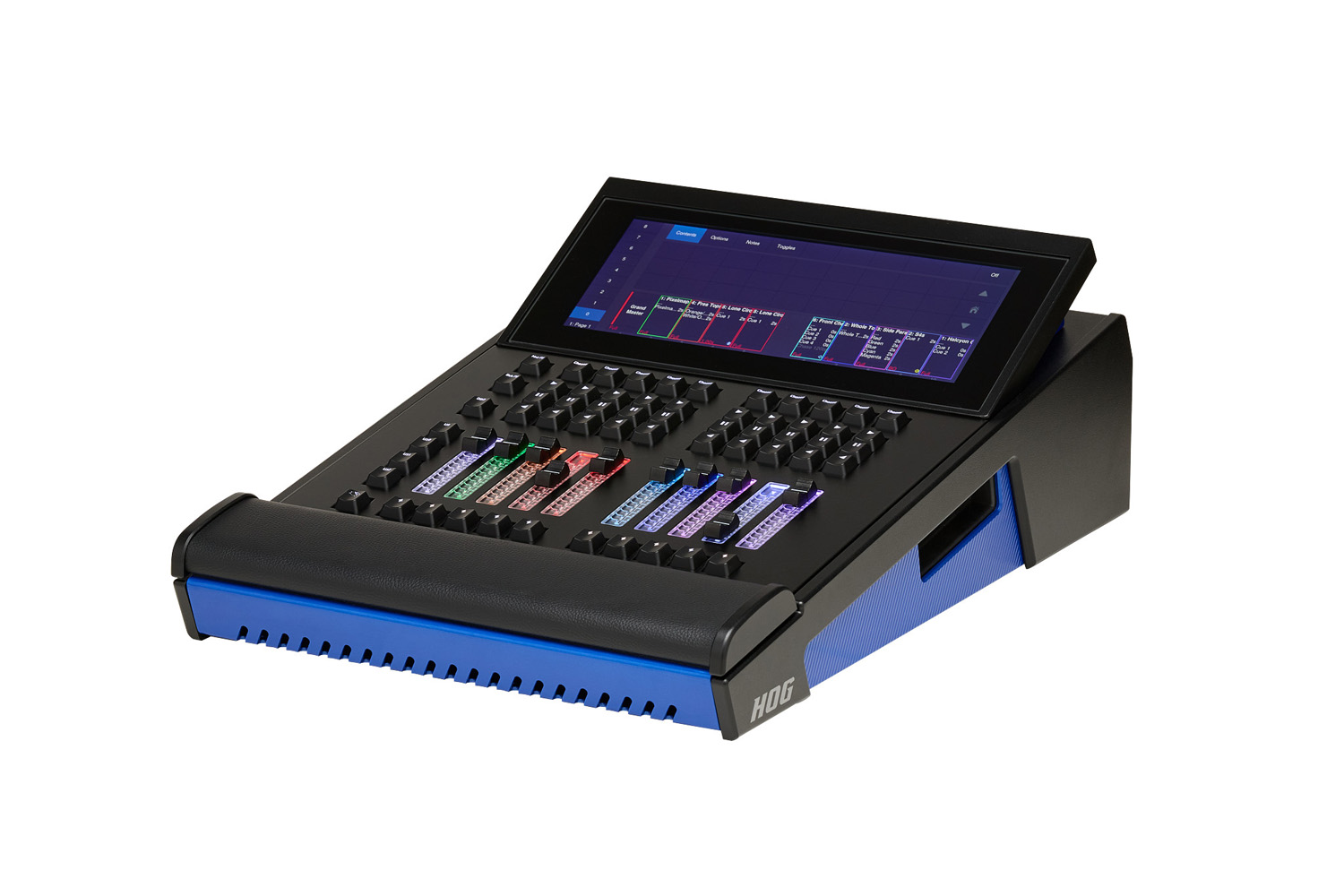

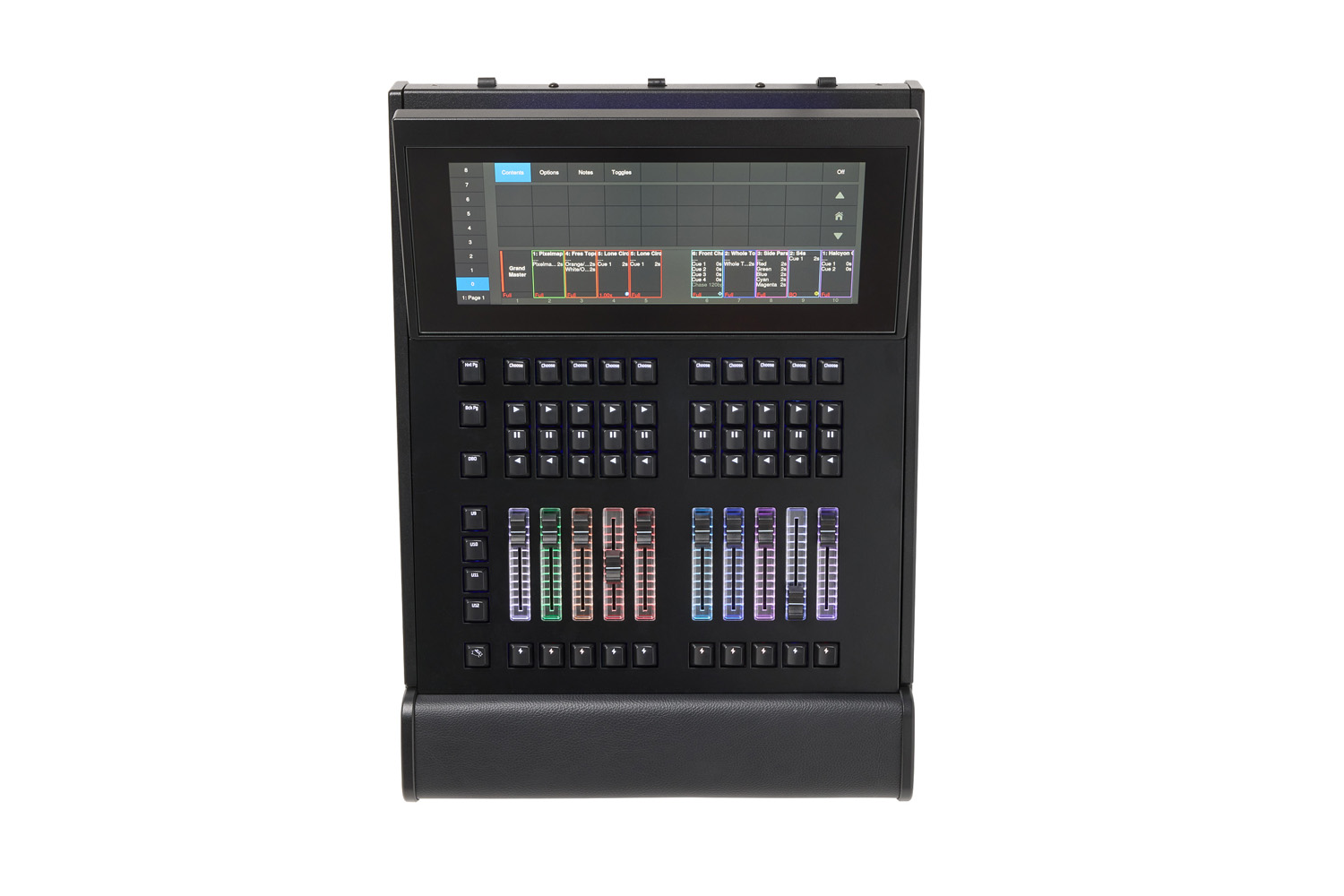

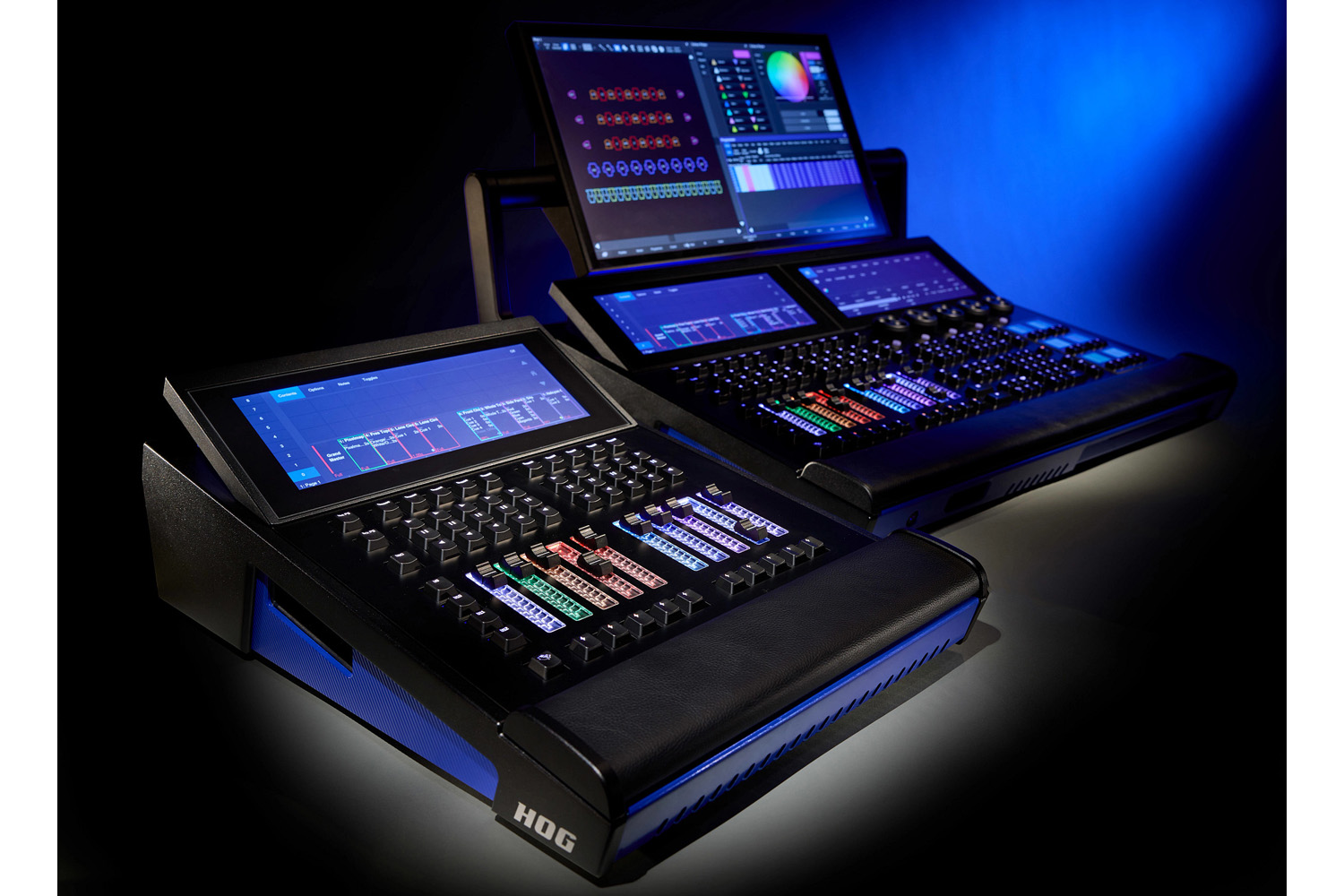

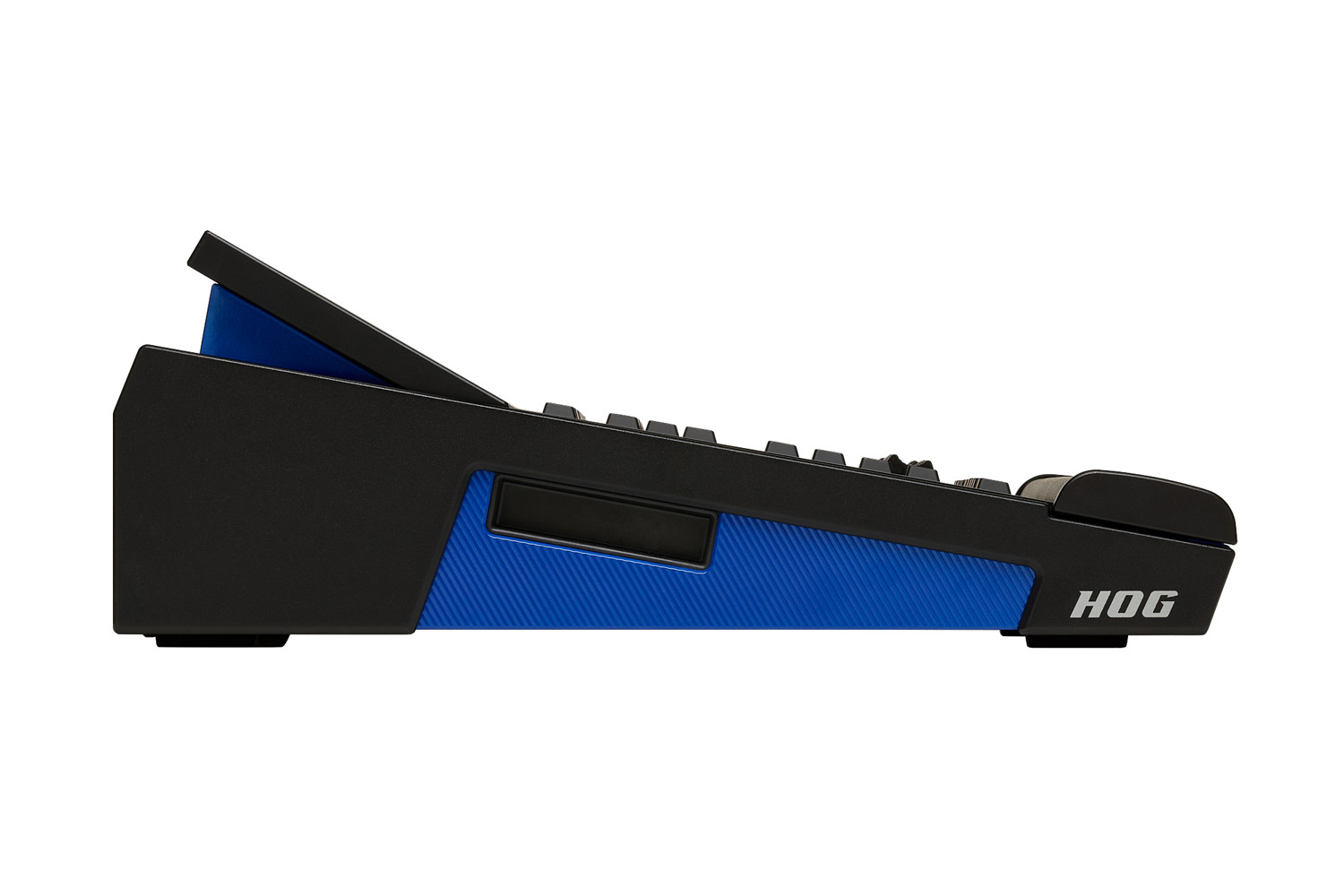

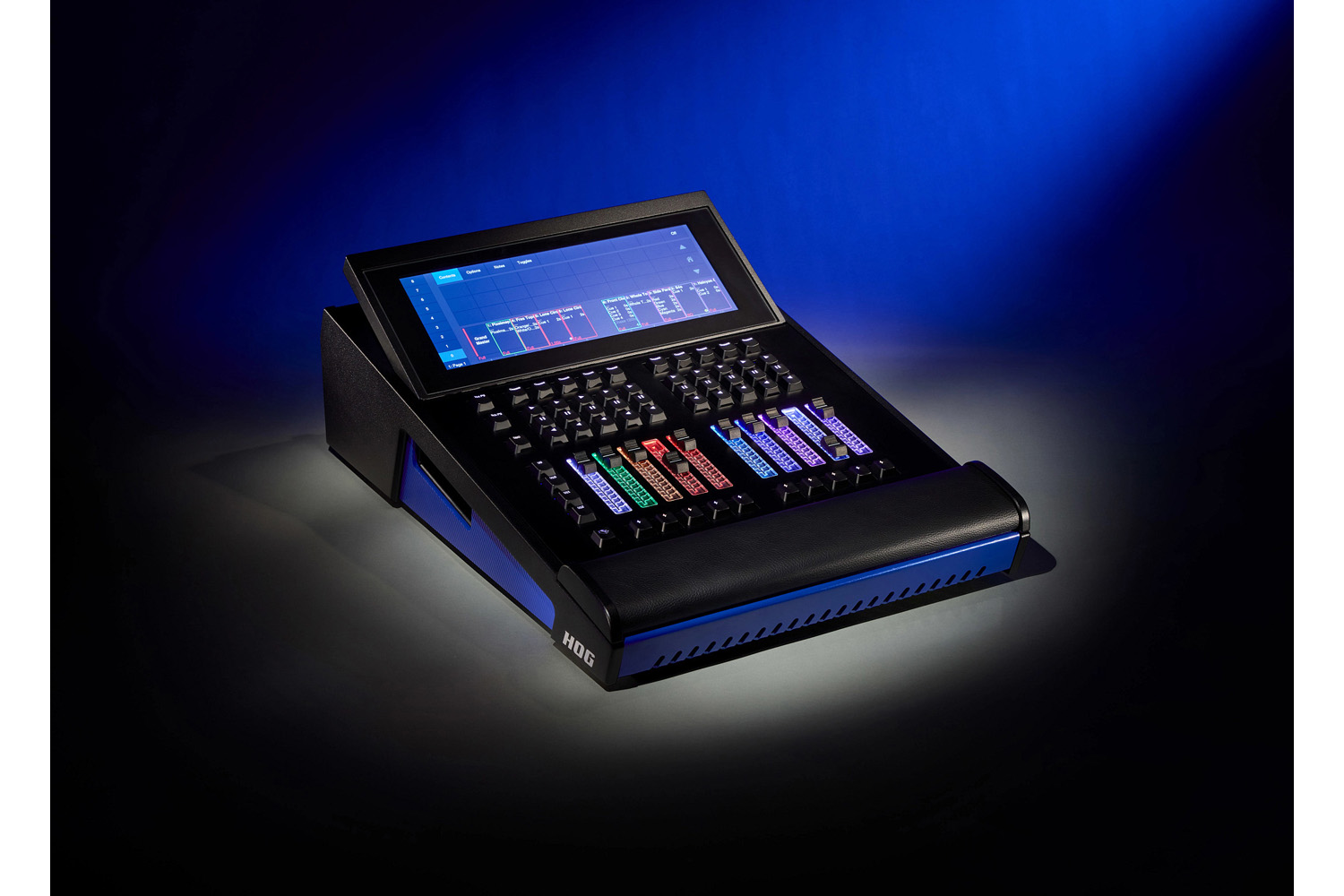

Tour Wing

Το Tour Wing είναι ένα επαγγελματικό playback wing με motorized faders για συστήματα Hog, σχεδιασμένο για άμεση επέκταση του ελέγχου. Παρέχει 10 motorized, RGB-backlit playbacks και πλήρη dashboard display για γρήγορο και ακριβή χειρισμό.

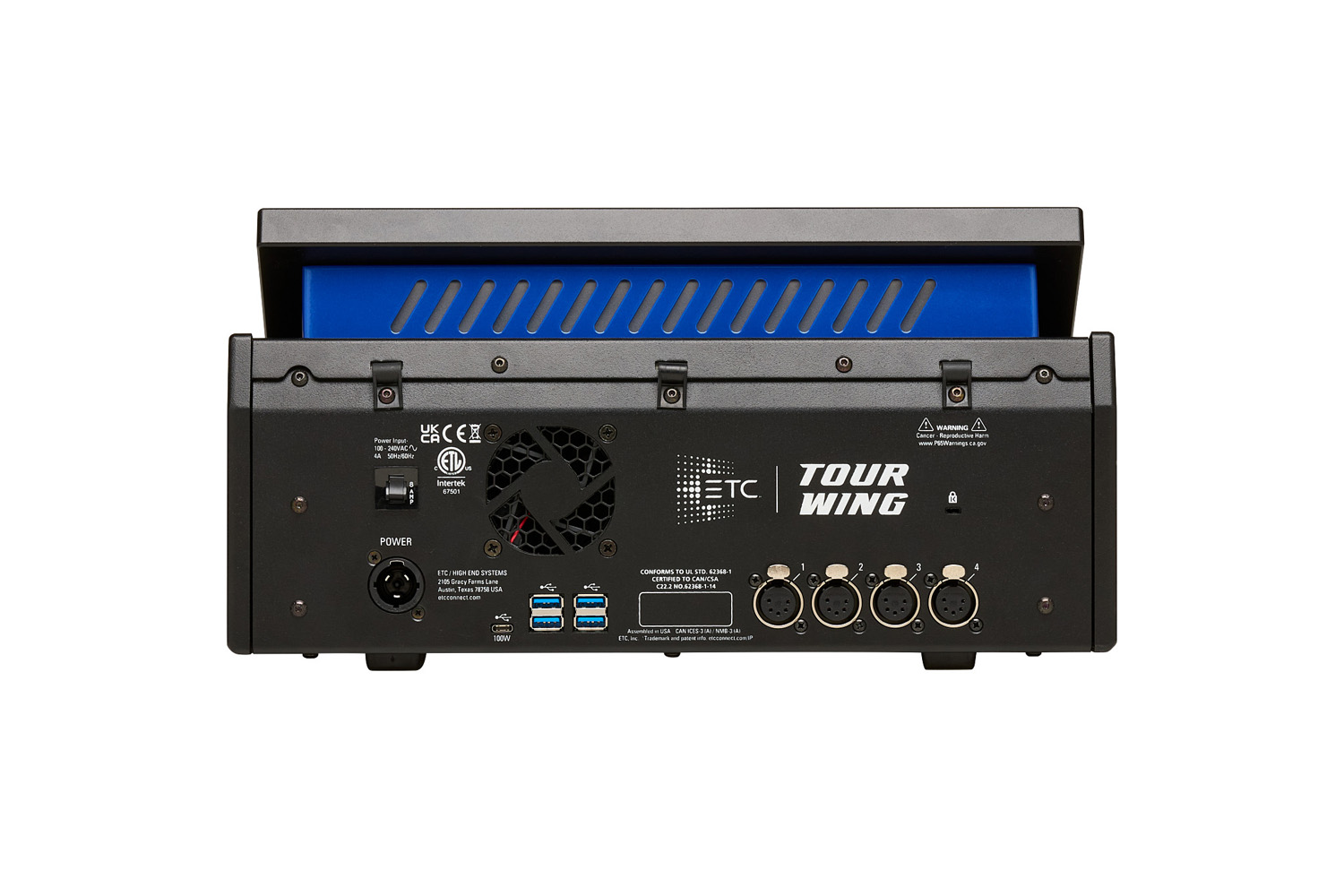

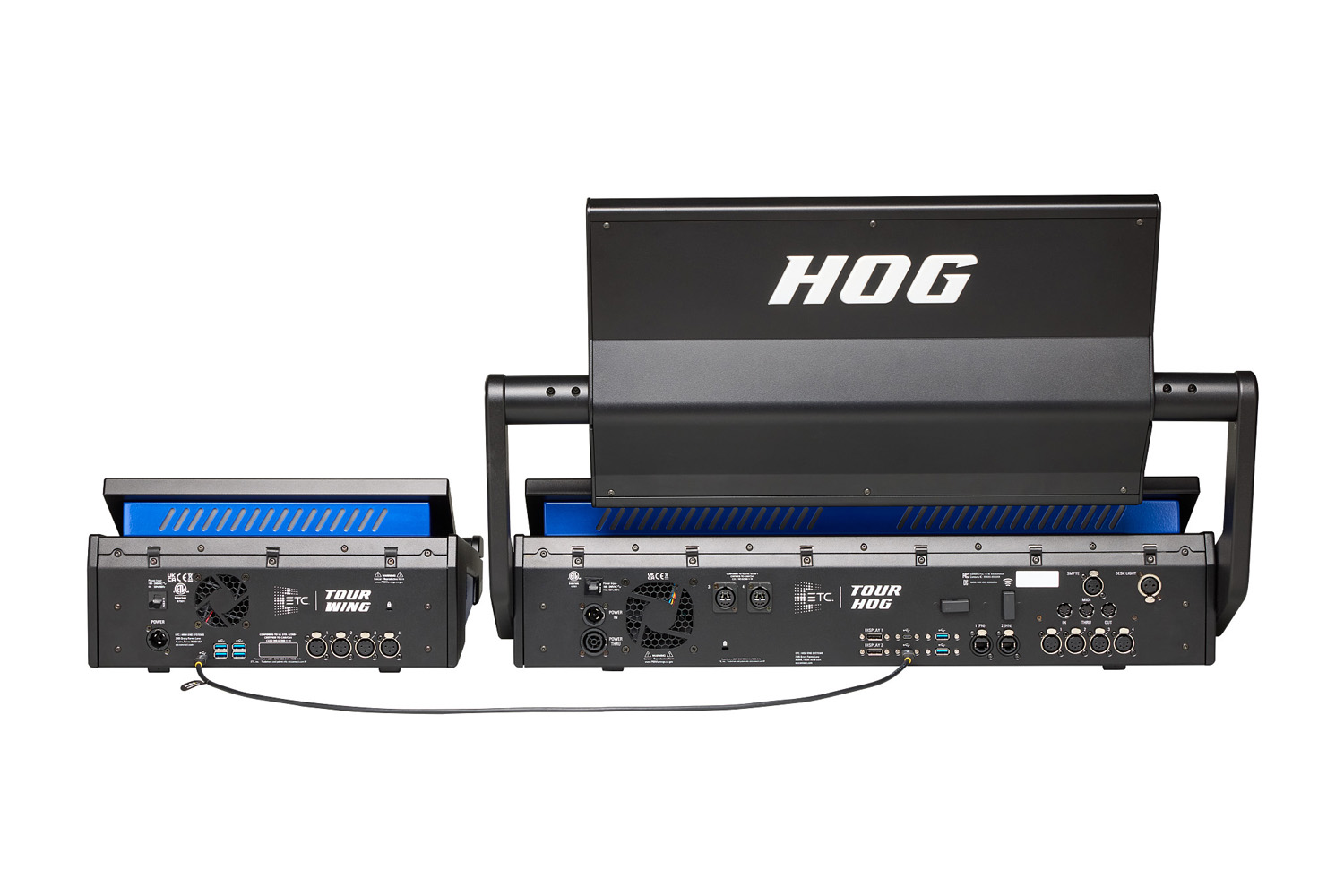

Ενσωματώνεται πλήρως με όλες τις Hog κονσόλες, συμπεριλαμβανομένων των HPU και Hog PC, προσφέροντας προηγμένες δυνατότητες programming και playback control. Διαθέτει εκτεταμένη συνδεσιμότητα με Neutrik powerCON TRUE1, EtherCON, opticalCON, USB 3.0 (Type A & C), DMX outputs (5-pin XLR), MIDI, SMPTE και desk light, ενώ υποστηρίζει multitouch display 23.8” και επιπλέον εξωτερικές οθόνες. Περιλαμβάνει πλήρες Hog programming environment με palettes, effects engine, pixelmapping, καθώς και ευέλικτο playback σύστημα με pageable motorized faders, macros, virtual masters και timecode support, καθιστώντας το ιδανική λύση για απαιτητικές lighting εφαρμογές.

Product features:

Power input
Neutrik powerCON® TRUE1
USB
4 × USB 3.0 Type A
1 × USB Type C
DMX outputs
4 × 5-pin XLR
USB-C power supply
100 W to laptop
System capacity
Unlocks 12 universes (6,144 addresses) when connected to Hog PC (no ETCnomad USB key required)
When connected to HPU, uses full HPU capacity (64 universes / 32,768 addresses)

Programming:

Interface
Command-line interface
Programmer window
Displays selected and adjusted fixtures
Selection & control
Lists constructed with +, -, Thru or selection softkeys, Next, Back and All commands
Intensity control
Command keypad, full key, intensity palettes
Groups
Ordered groups
Groups for simplified fixture selection
Fanning
Comprehensive fanning using segments and buddying
Tools
Media picker window
Hog Color System
Palettes
Intensity, position, colour, beam, effects
Effects
Effects Engine
Pixelmapping effects
Functions
Park
Undo
Delete, Move and Copy
Highlight, lowlight, rem dim
Cue control
Cue level and parameter level timing
Commands
Record, Update and Merge
Knockout and Clear
Set command for text labels and data entry

Playback controls:

Playback dashboard
Display for playback bar, master ranges and additional playback tools
Playbacks
10 pageable motorized RGB-backlit master playbacks
Faders
Customizable with flash, go, halt, back and choose keys
Main playback stack
GM, Restart, Assert, Release, Pig
Skip forward, Skip backward
Master pause, Master play
Control features
Master ranges for reassignment
Unlimited fader pages
Paging keys
Macros
Comment macros
Keystroke macros
Advanced control
Virtual masters
Scenes
Batch controllers
Group masters
Triggering
Via command keys

Interfaces and accessories:

Consoles

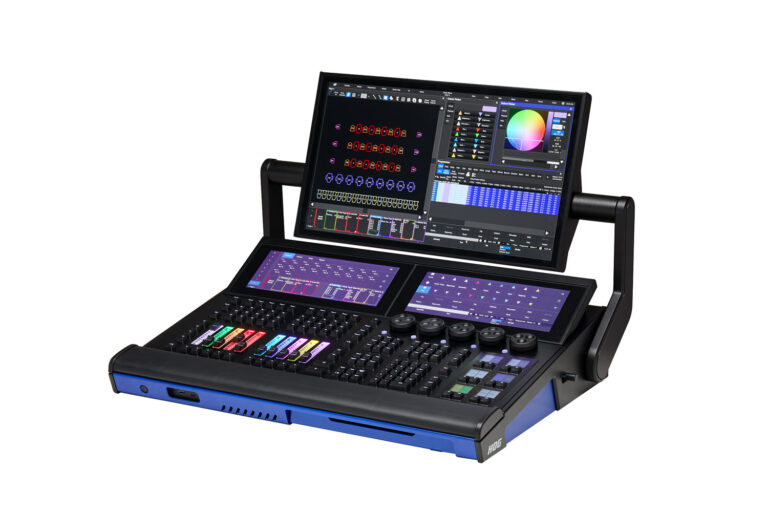

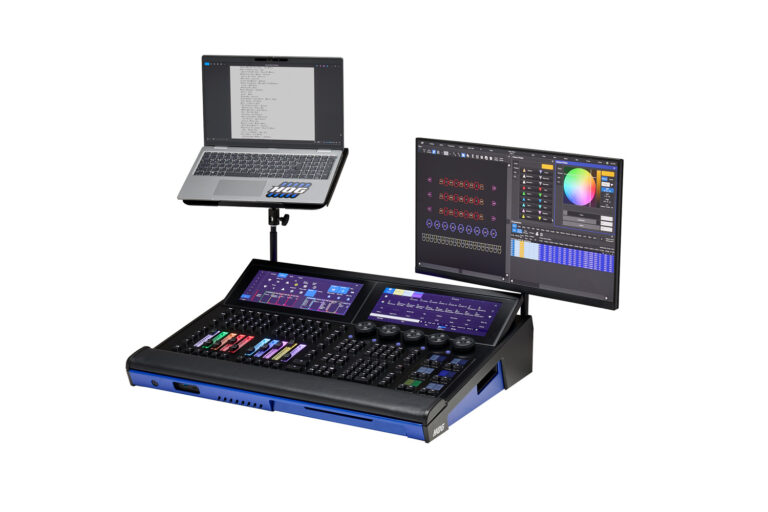

Tour, Stage and Flex Hog consoles
Accessories

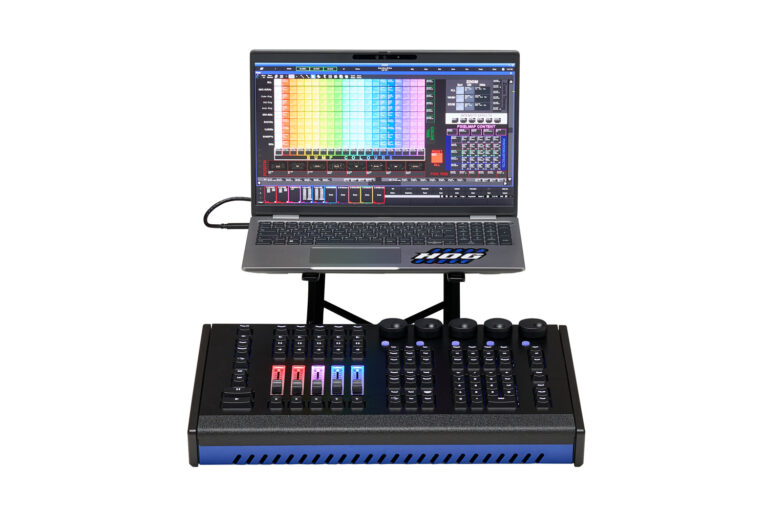

Gig Hog programming wing
HPU hybrid processing unit
Response network gateways and interfaces
Software
Hog PC
ETCnomad

Electrical and environmental:
