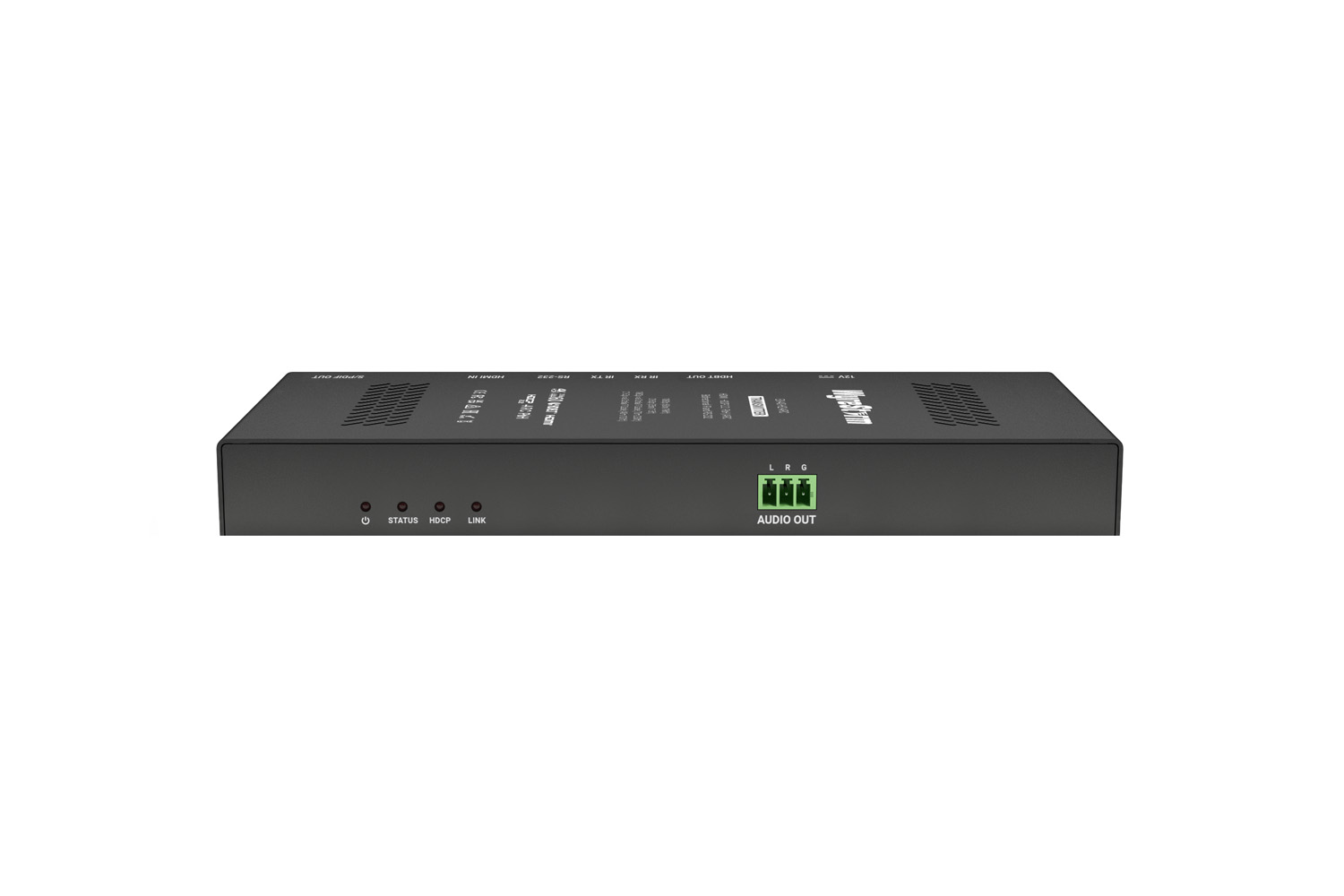

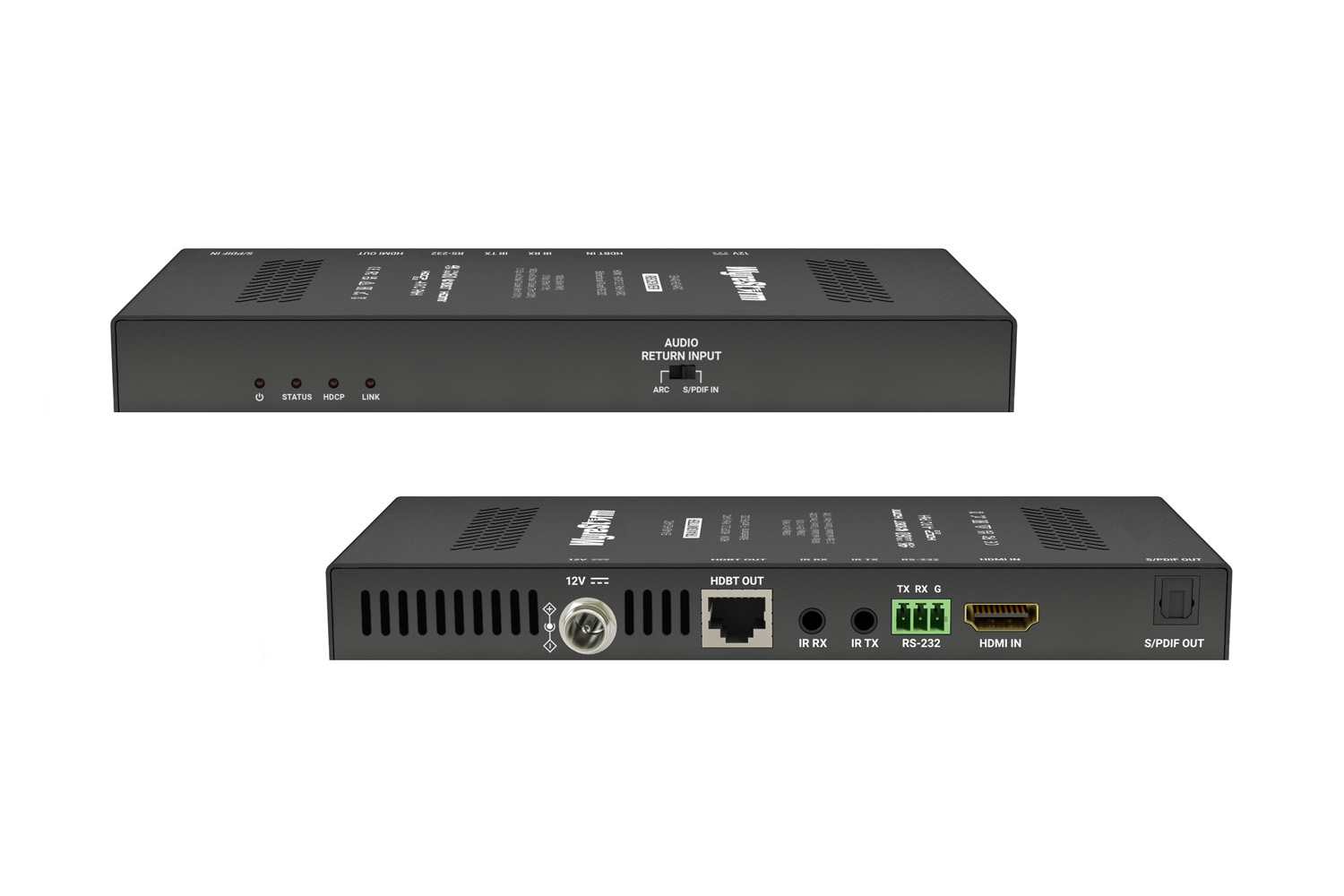

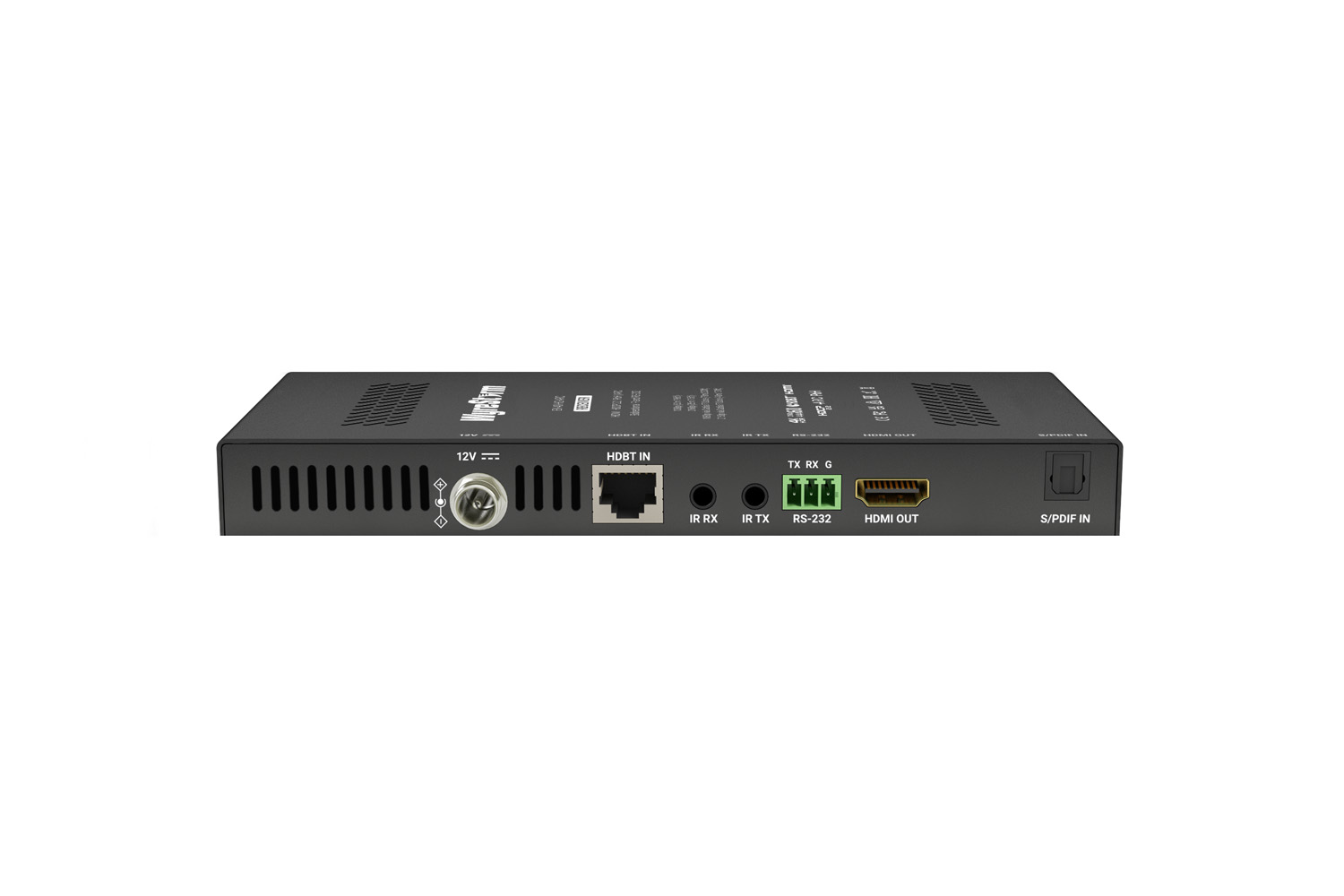

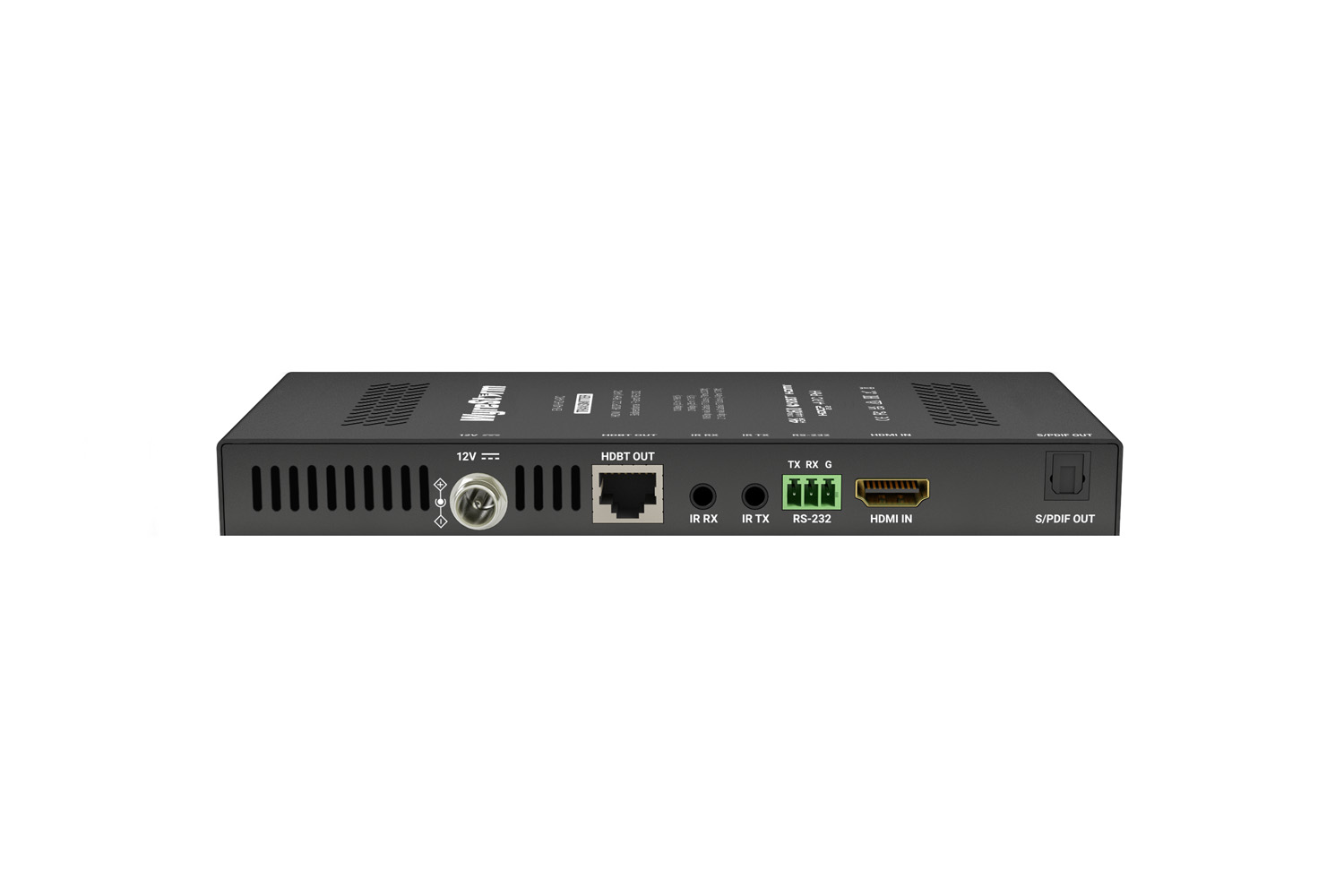

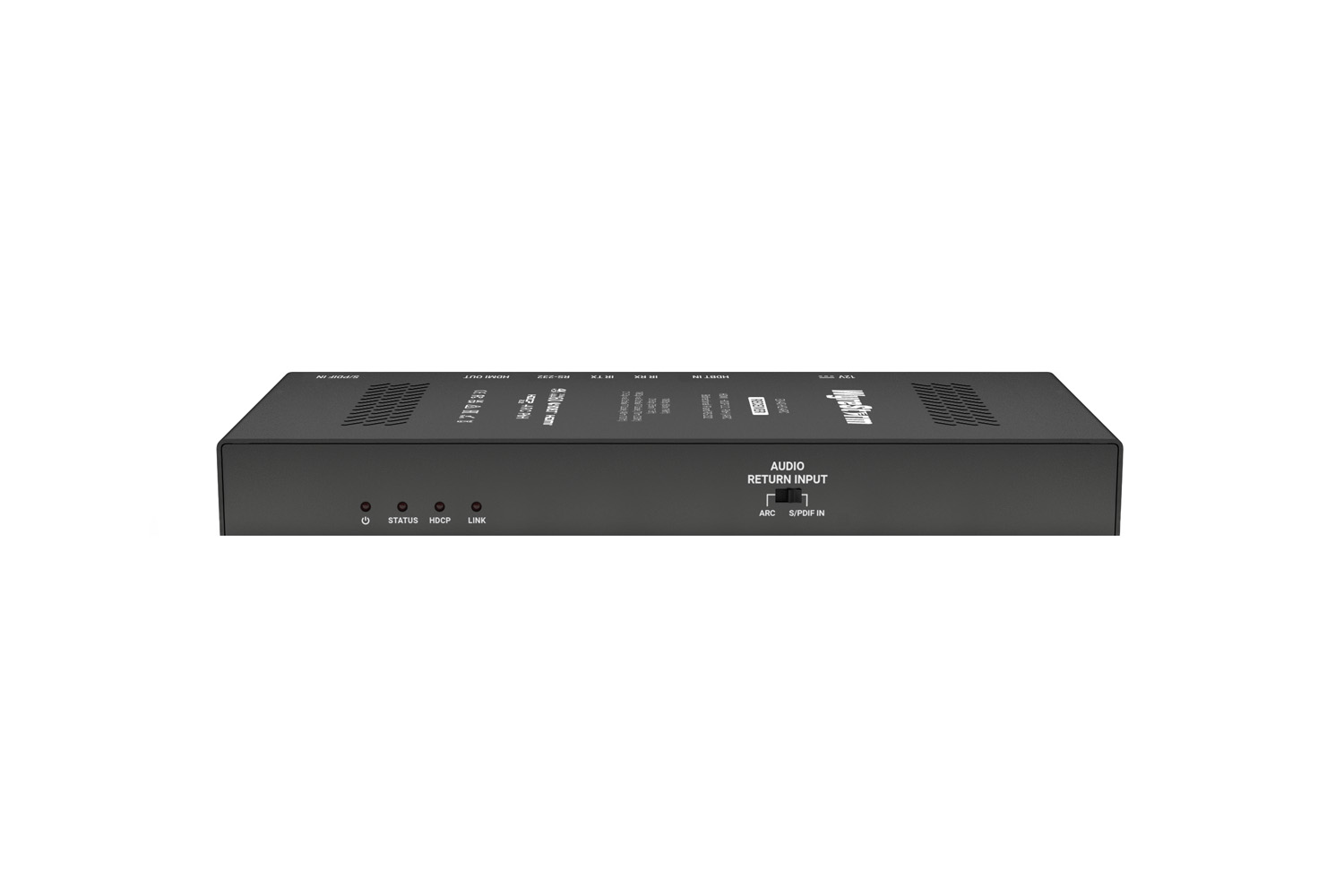

EX-40-H2-ARC

audio & video

inputs

• 1× hdmi (tx)

• 1× hdbaset (rx)

outputs

• 1× hdmi (rx)

• 1× hdbaset (tx)

• 1× toslink

• 1× analog 3-pin phoenix

end-to-end latency

• <1 ms

input signal type

• hdmi with hdcp 2.2

maximum pixel clock

• 600 mhz

maximum data rate

• 18 gbps

video resolutions (max)

• up to 4096×2160 @60hz 4:4:4

resolutions supported

• 800×600, 1024×768, 1280×768, 1280×800, 1280×960, 1280×1024, 1360×768, 1366×768, 1440×900, 1600×900, 1600×1200, 1680×1050, 1920×1080, 1920×1200, 3840×2160, 4096×2160

audio formats supported

• hdmi: pcm 2.0 / 5.1 / 7.1, dolby truehd, atmos, dts:x

• s/pdif and arc: pcm 2.0, dolby digital, dts 5.1

transmission distance

• cat 5e/6: 35 m / 115 ft 4k@60hz 4:4:4, 60 m / 197 ft 1080p@60hz

• cat 6a/7: 40 m / 131 ft 4k@60hz 4:4:4, 70 m / 197 ft 1080p@60hz

• hdmi: input/output 15 m / 49 ft 1080p@60hz, 10 m / 33 ft 4k@30hz 4:4:4, 5 m / 16 ft 4k@60hz 4:4:4

communication & control

hdmi

• hdcp 2.2 | edid | cec (transparent on arc)

rs-232

• bi-directional, 3-pin phoenix

ir

• bi-directional, 3.5 mm trs

power

• power supply: dc 12v / 3a

• max power consumption:

  • receiver powered by transmitter: 18.72 w

  • transmitter powered by receiver: 18.96 w

  • separately powered: transmitter 8.4 w, receiver 6.6 w

environmental

• operating temperature: 0°c to 45°c

• storage temperature: -20°c to 70°c

• humidity: 10% to 90%, non-condensing

• esd protection: human-body model ±8kv air / ±4kv contact

dimensions

• height x width x depth: 21 mm x 195 mm x 94.8 mm

• weight: transmitter 0.4 kg, receiver 0.4 kg

safety & emission

• ce | fcc | rohs | rcm | eac | ukca
