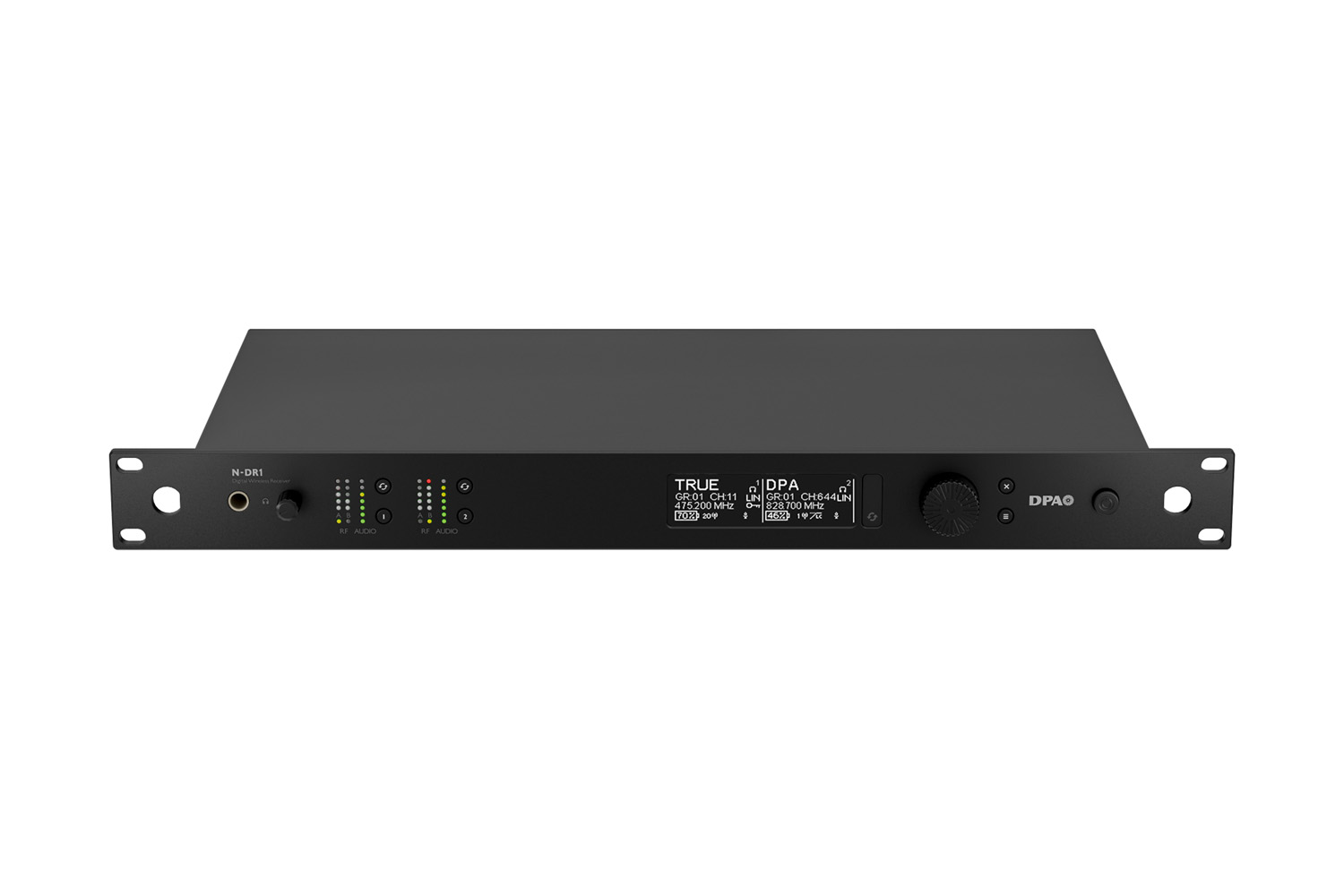

N-DR1 Dante/Analog

RF (Radio Frequency)

• Frequency range: 470 – 870 MHz (varies by region)

• Input impedance: 50 Ω

• Tuning steps: 25 kHz

• Sensitivity: -96 dBm at 10⁻⁵ BER

• Input bias voltage: 12 V, max 250 mA per antenna

• Input connector: BNC

• Working range: 100 m (330 ft) – depends on RF environment (absorption, reflection, interference)

Audio

• Polarity: Positive sound pressure → positive voltage on outputs

• System dynamic range: 126 dB analog / 126 dB digital

• Frequency response: 20 – 20 kHz (±1 dB)

• Digital audio trim: -20 dB to +40 dB (1 dB increments)

• Latency: < 2.9 ms

Dante / Network

• Interface: Primary / Secondary on separate connectors from Control Network

• Sample rates: 44.1, 48, 88.2, 96 kHz

• Network interface: Switched dual-port Ethernet, max 100 Mbps

• Addressing: DHCP or manual IP

Analog Outputs (if applicable)

• Output impedance: 66 Ω

• Signal level: Line or Mic (-30 dB pad selectable)

• Audio reference: 0 dBu – 20 dBu (1 dB increments)

Physical / Mechanical

• Housing: Steel and aluminium

• Dimensions (H x W x D): 44 x 482 x 246 mm (1.7 x 19.0 x 9.7 in)

• Weight: 3.6 kg (7.9 lb)

• Colors: Black, Matte black

Power

• Supply voltage: 100 – 240 VAC (autosensing)

• Max power: 28 W

Environment

• Operating temperature: -10°C to 50°C (14°F – 122°F)

• Storage temperature: -20°C to 50°C (4°F – 122°F) without batteries
