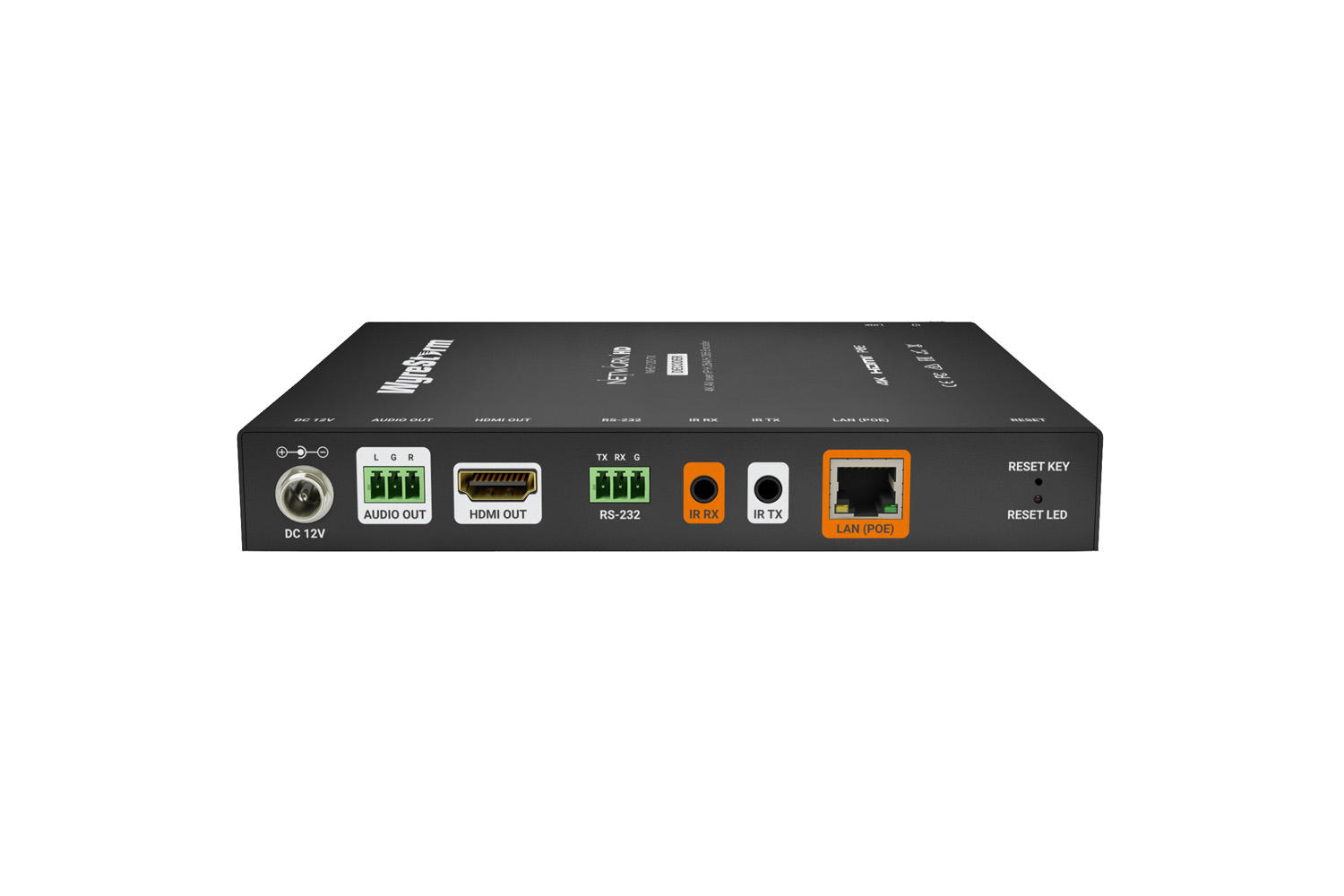

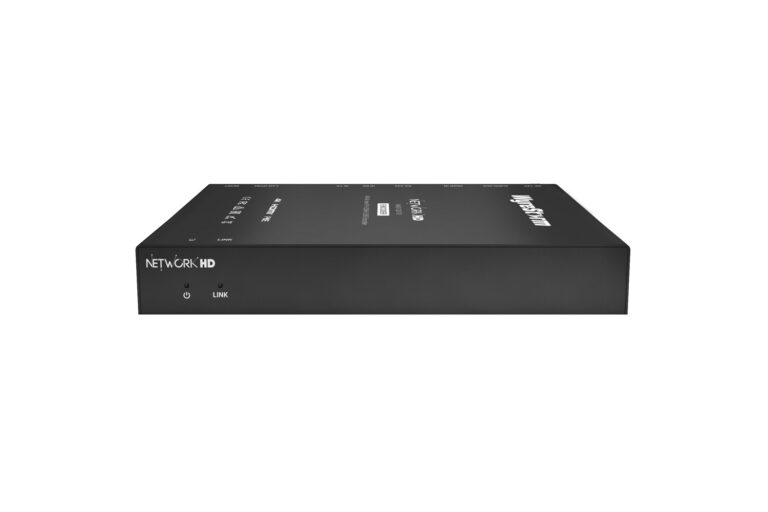

NHD-120-RX

• Audio & video
• Inputs

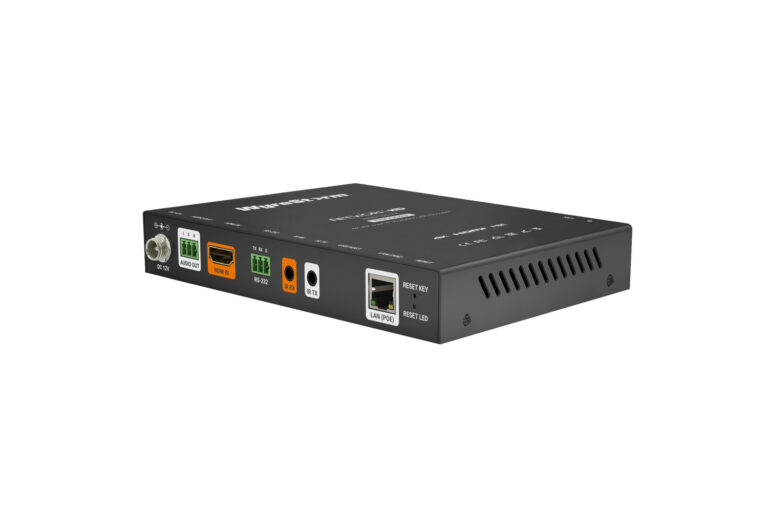

TX
1 x HDMI 19-pin HDMI type A

RX
1 x 8-pin RJ-45 female | 10/100Base-T

• Outputs

TX
1 x 3-pin Phoenix Analog Audio (de-embed from HDMI input)

RX
1 x HDMI 19-pin HDMI type A
1 x 3-pin Phoenix Analog Audio

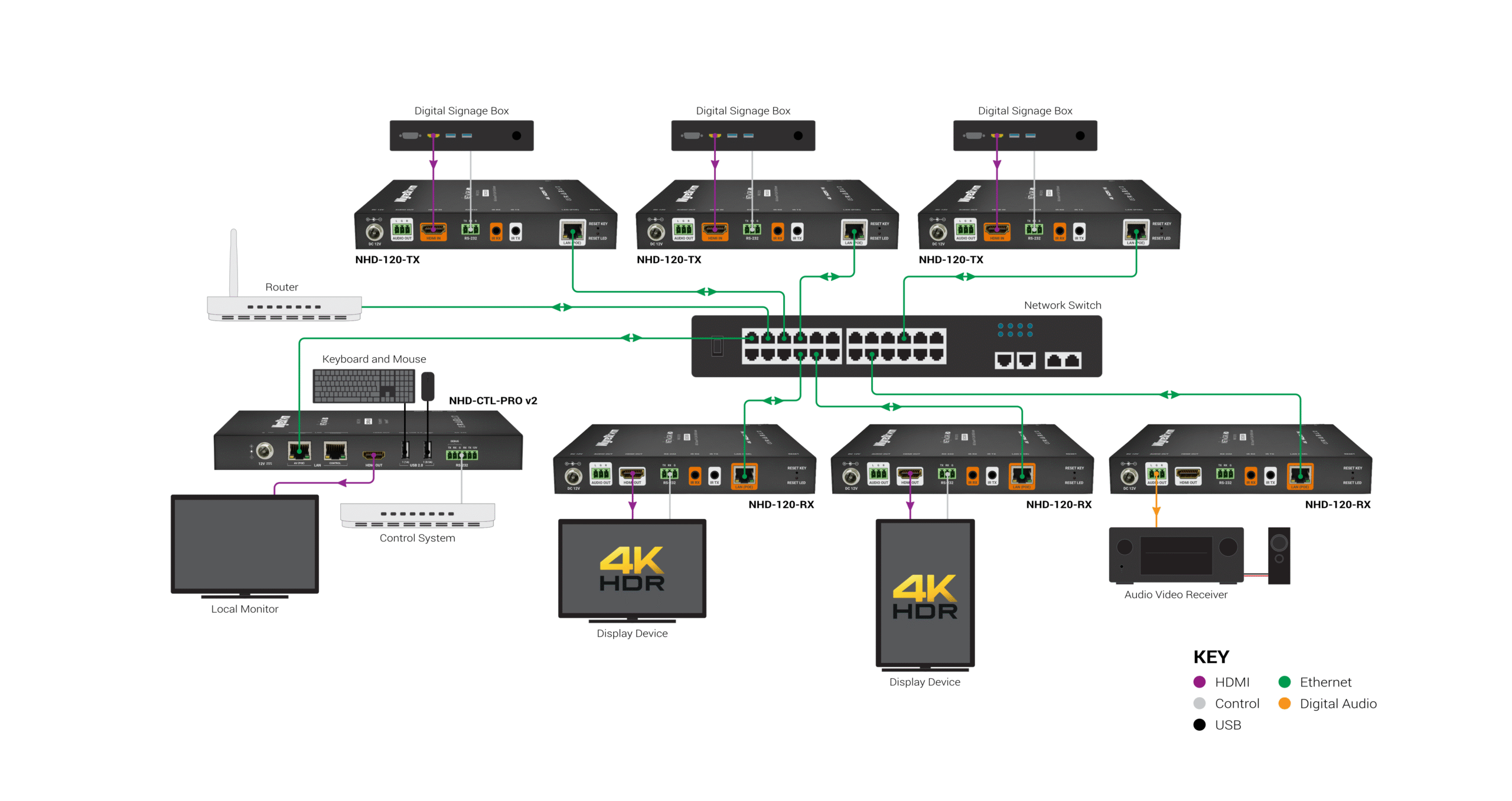

Both HDMI and Analog outputs allow discrete audio routing from any available NHD-120-TX on the same network.

• End-to-end latency
  1080p:
  High Quality Mode: ~250ms
  Low Latency Mode: ~80ms
  4K:
  High Quality Mode: ~300ms
  Low Latency Mode: ~150ms
• Audio formats
  LPCM / MPEG4 AAC stereo, 48KHz
• Video resolution (max)
  1920x1080p @ 60Hz
  3840x2160p @ 30Hz 4:2:0 8bit
• Maximum pixel clock
  297MHz
• Communication & control
• HDMI
  HDMI 1.4
  HDCP 2.2
  EDID
  CEC
• RS-232
  1 x 3-pin Phoenix – API controlled from CTL
• LAN
  1 x 8-pin RJ-45 female | 10/100Base-T | PoE 802.1af
• IR
  1 x IR TX: 3.5mm TS Jack Socket
  1 x IR RX: 3.5mm TS Jack Socket
  IR signals can be bi-directional passthrough or via API commands from NHD-CTL-PRO for routable IR to discrete TX/RX devices
• Security protocols
  AES 128
  SSH
  HTTPS
• Power
• Power supply
  12V DC 1A
  802.3af PoE Compliant
• Max power consumption
  3.6W (DC adapter)
