SYN-CTL-FL10

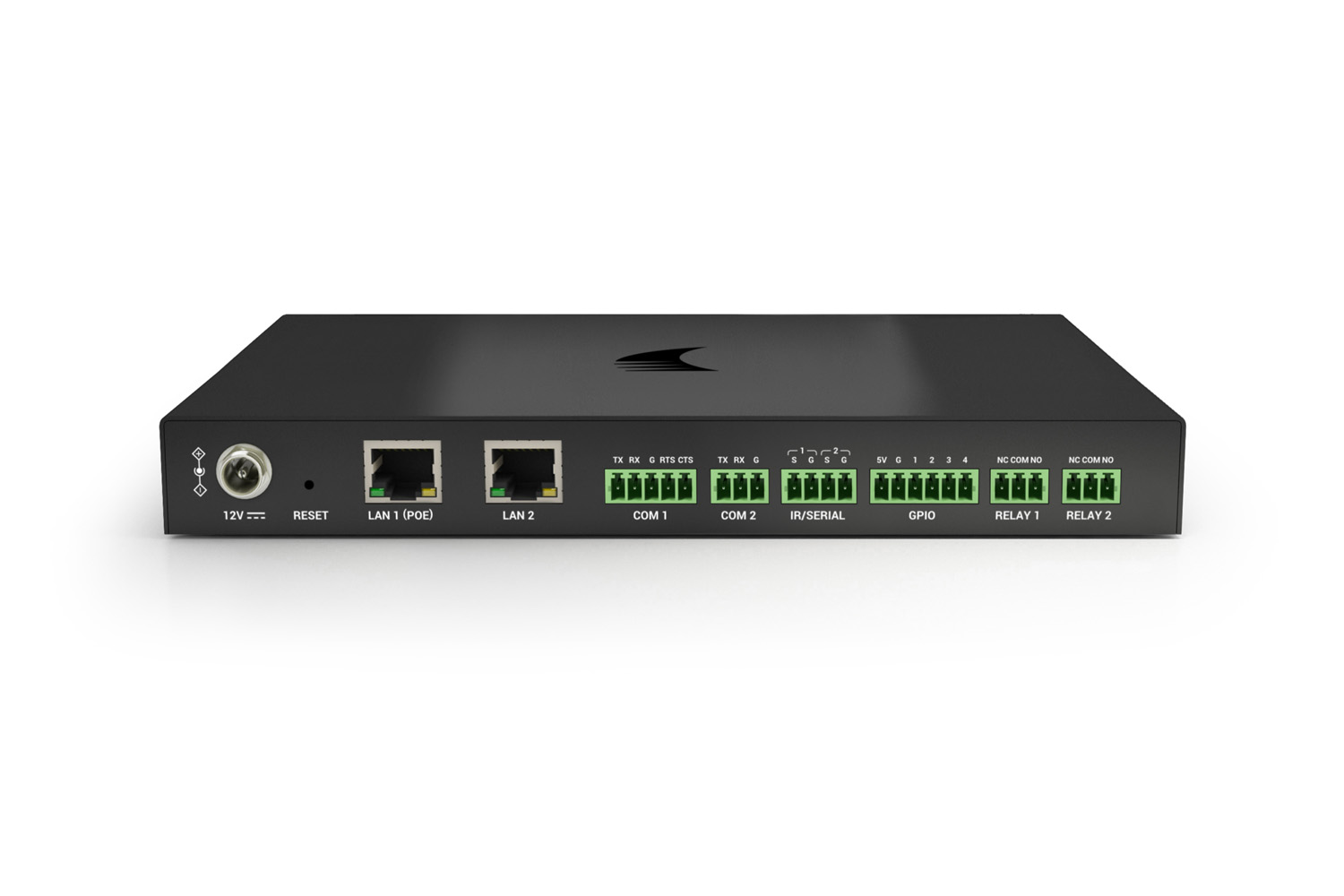

• LAN: 2 x RJ45 Gigabit Ethernet ports with PoE support (IEEE 802.3af PD on LAN 1)

• Serial Ports: 1 x configurable RS-232/422/485 port, 1 x RS-232 port (Baud rate up to 115,200 bps)

• IR & Control: 2 x configurable IR output / serial Tx ports (Carrier frequency: 20 kHz – 60 kHz)

• I/O Connections: 4 x configurable digital input/output channels

• Relay: 2 x SPDT relay ports (Contact rating: 1 A @ 30 VAC/VDC)

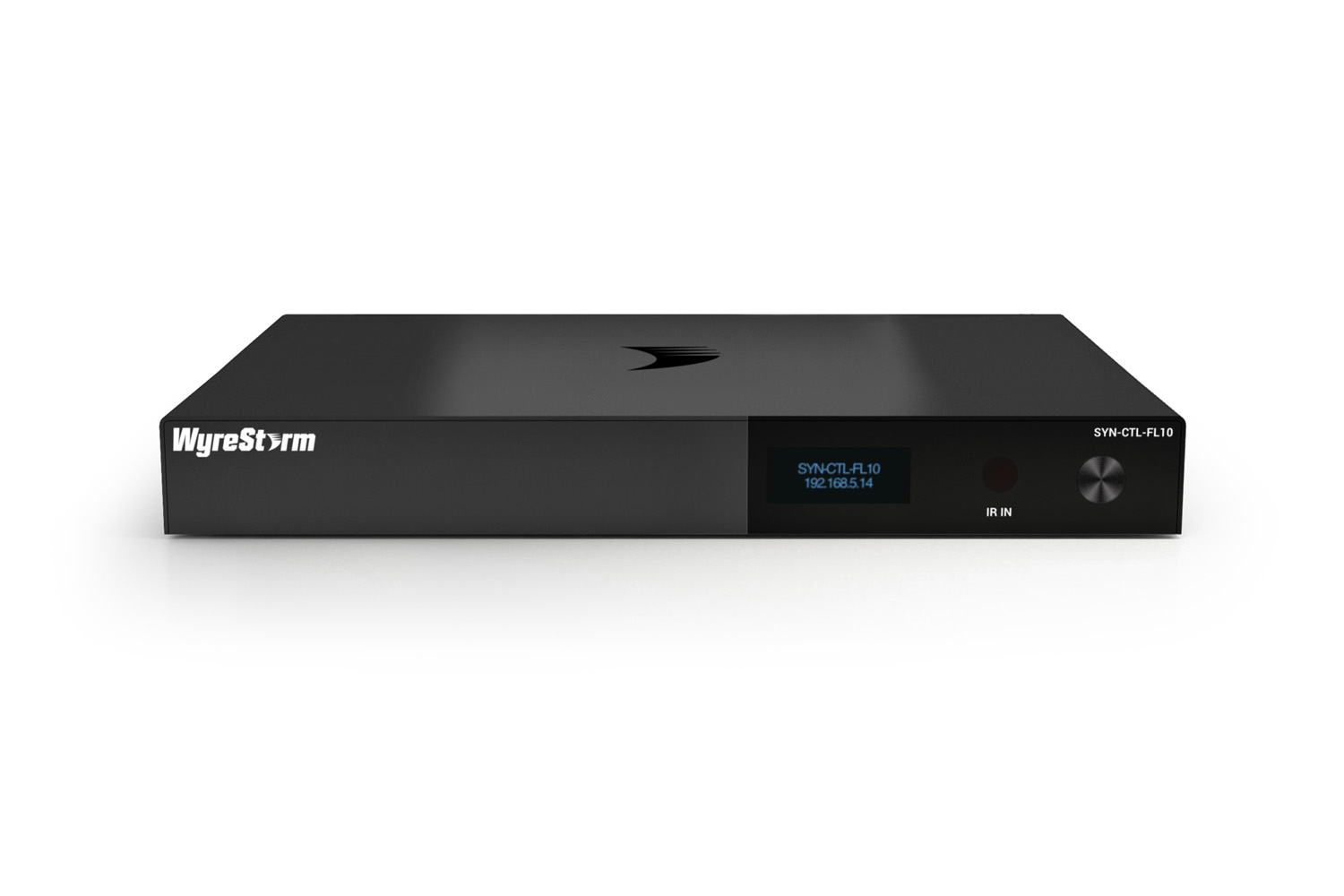

• Interface & Controls: 1 x OLED screen, 1 x RESET button, 1 x Front Panel button

• Control Methods: LAN (Web UI / Telnet API) and Node-RED automation platform

Electrical & Power

• Power Input: 12V DC or PoE (Power over Ethernet)

• Power Consumption: 3.6W (Max)

• GPIO Digital Input:

  • Voltage Range: 0–30 VDC

  • Thresholds: Logic High > 2 VDC, Logic Low < 0.8 VDC (Undefined: 0.8–2.0V DC)

  • Impedance & Pull-up: > 10k ohms input impedance; Programmable 5V, 1k $\Omega$ pull-up resistor

• GPIO Digital Output: 60 $\Omega$ output impedance; Programmable 5V, 1k $\Omega$ pull-up resistor

Physical & Environmental

• Operating Temperature & Humidity: 32–113°F (0–45°C), 10%–90% RH (non-condensing)

• Storage Temperature & Humidity: −4–158°F (−20–70°C), 10%–90% RH (non-condensing)

• ESD Protection: Human body model ($\pm 8$ kV air-gap / $\pm 4$ kV contact discharge)

• Dimensions: 215mm x 25mm x 120mm (8.46" x 0.98" x 4.72")

• Net Weight: 1.54 lbs (0.70 kg)
