VEXO110A

system specifications

speaker type

• 2-way

peak power handling

• 1200 W

program power handling

• 600 W

continuous power (AES)

• 300 W

impedance

• 8 Ω

sensitivity (1W/1m)

• 96 dB

sound pressure (Max. W/1m)

• 121 dB

frequency

• response (±3 dB): 65 Hz – 20 kHz

dispersion

• horizontal: 90°

• vertical: 70°

crossover

• type: passive built-in

drivers

• HF: Compression driver with 1.7" VC and 1" throat

• LF: 10" (2.5" VC)

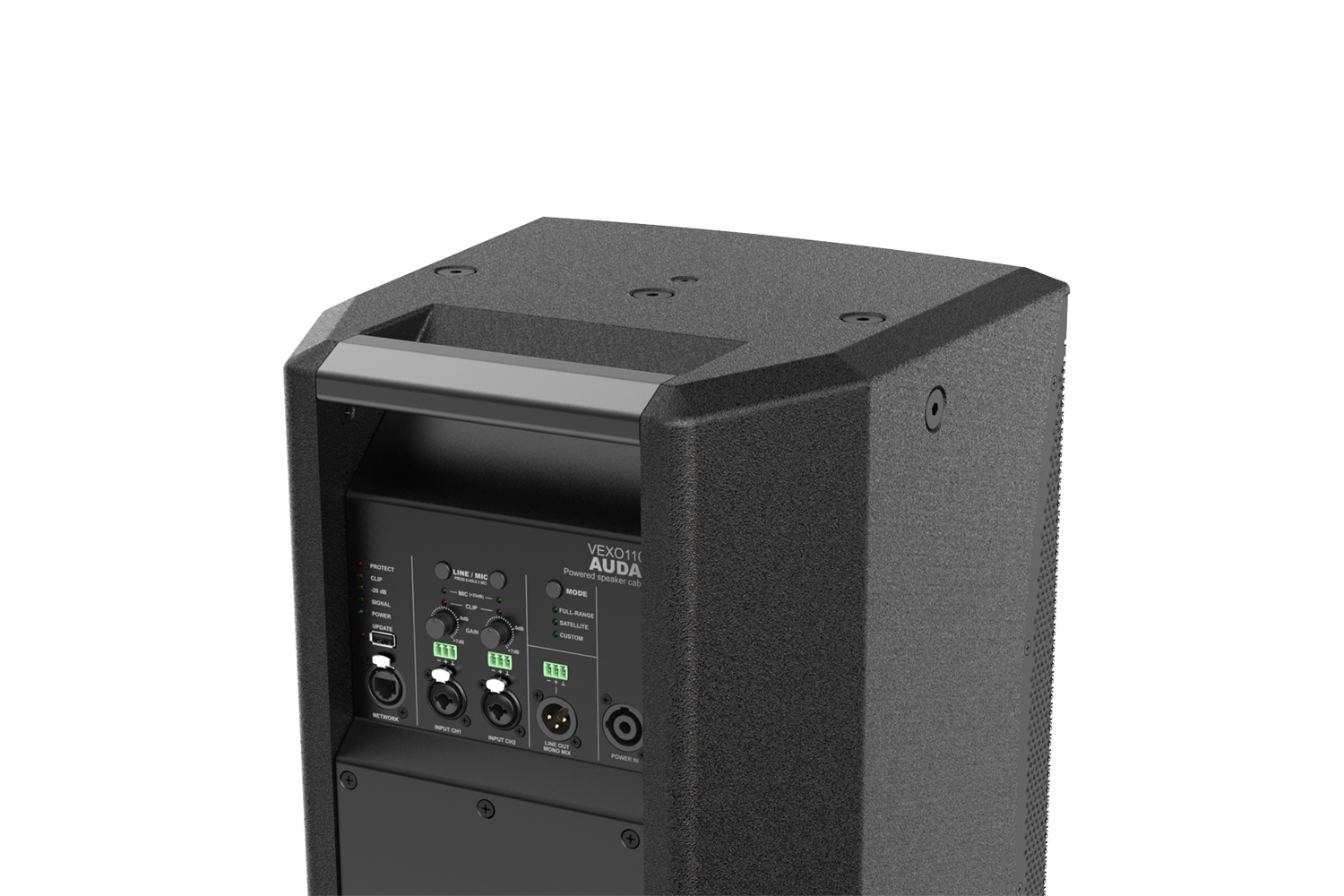

connectors / inputs

• Remote control: RJ45

• Input: 2 x Combo XLR / 6.3 mm jack, 3-pin Euro Terminal Block (Pitch - 3.81 mm), 3-pin terminal block (linkthrough), XLR male (linkthrough)

• USB port

• RJ45 (Ethernet)

power consumption

• standby: 3.2 W

• idle: 22.5 W

• AC voltage: 110 ~ 240 V AC / 50 ~ 60 Hz

product features

dimensions

• 329 × 540 × 345 mm (W × H × D)

weight

• 18 kg

construction

• 15 mm high-quality plywood

cabinet finish

• Polyurethane coating

front finish

• Powder coated steel grill with acoustical foam

mounting & handling

• rigging points: 10 x M10

• stand fitting: 35 mm pole adapter on bottom

• carry handles: on top

• Powerdrive mount: type 75 (108 × 50.8 mm)

accessories (optional)

• ANI44XT - Dante™/AES67 audio network interface

• MBK110V Mounting bracket

colours

• Black & White

recommended applications

• Bars & Restaurants

• Clubs

• Concert venues

• Education

• Sporting facilities

• Events
